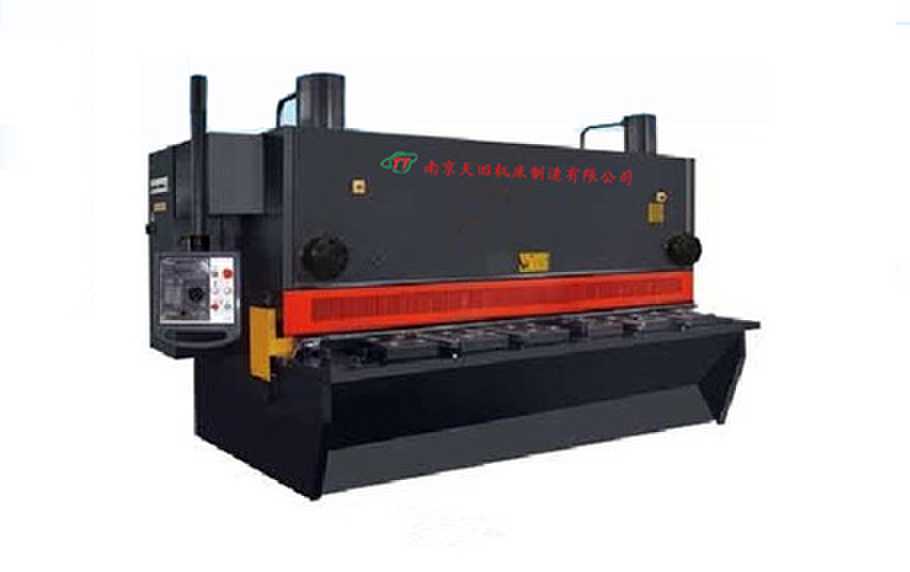

一、HT11K-E21S或MD11-1系列經濟數控液壓閘式剪板機特點:
型號 | 可剪規格長*寬 | 剪切角(°) | 行程次數(n/min) | 后擋料距離 | 電機功率 | 外形尺寸(長*寬*高) |
HT11K-4*2500 | 4*2500 | 1.5° | 18 | 20-600 | 5.5 | 3040*1610*1650 |
HT11K-4*3200 | 4*3200 | 1.5° | 14 | 20-600 | 7.5 | 3840*1610*1650 |
HT11K-4*4000 | 4*4000 | 1.5° | 10 | 20-600 | 7.5 | 4640*1705*1700 |
HT11K-4*5000 | 4*5000 | 1.5° | 10 | 20-600 | 7.5 | 5786*2200*2160 |
HT11K-6*2500 | 6*2500 | 1.5° | 18 | 20-600 | 7.5 | 3040*1610*1650 |
HT11K-6*3200 | 6*3200 | 1.5° | 14 | 20-600 | 7.5 | 3840*1610*1650 |
HT11K-6*4000 | 6*4000 | 1.5° | 10 | 20-600 | 7.5 | 4640*1705*1700 |
HT11K-6*5000 | 6*5000 | 1.5° | 10 | 20-750 | 11 | 5786*2200*2160 |
HT11K-6*6000 | 6*6000 | 1.5° | 7 | 20-800 | 15 | 6900*2570*2280 |
HT11K-8*2500 | 8*2500 | 1.5° | 14 | 20-600 | 7.5 | 3040*1610*1650 |
HT11K-8*3200 | 8*3200 | 1.5° | 10 | 20-600 | 7.5 | 3840*1610*1650 |
HT11K-8*4000 | 8*4000 | 1.5° | 8 | 20-600 | 7.5 | 4680*1705*1700 |
HT11K-8*5000 | 8*500 | 1.5° | 7 | 20-750 | 11 | 5786*2252*2310 |
HT11K-8*6000 | 8*6000 | 1.5° | 5 | 20-750 | 15 | 6900*2570*2280 |
HT11K-10*2500 | 10*2500 | 1.5° | 11 | 20-800 | 11 | 3350*2050*1950 |
HT11K-10*3200 | 10*3200 | 1.5° | 10 | 20-600 | 11 | 4050*2050*1950 |
HT11K-10*4000 | 10*4000 | 1.5° | 12 | 20-800 | 15 | 4800*2200*2100 |
HT11K-12*2500 | 12*2500 | 1.5° | 11 | 20-600 | 18.5 | 3350*2050*1950 |
HT11K-12*3200 | 12*3200 | 1.5° | 10 | 20-800 | 18.5 | 4020*2050*2230 |
HT11K-12*4000 | 12*4000 | 1.5° | 8 | 20-800 | 18.5 | 4820*2400*2730 |
HT11K-16*2500 | 16*2500 | 2° | 8 | 20-800 | 18.5 | 3520*2060*2350 |
HT11K-16*3200 | 16*3200 | 2° | 7 | 20-800 | 18.5 | 4062*2300*2320 |
HT12K-16*4000 | 16*4000 | 2° | 5 | 20-800 | 22 | 4850*2350*2300 |
HT11K-20*2500 | 20*2500 | 2° | 6 | 20-800 | 22 | 3440*2088*2570 |
HT11K-20*3200 | 20*3200 | 2° | 5 | 30-800 | 37 | 4150*235*2710 |
HT11K-20*4000 | 20*4000 | 2° | 5 | 30-1000 | 37 | 4280*2400*2730 |
HT11K-20*5000 | 20*5000 | 3° | 4 | 20-800 | 37 | 5900*3000*3300 |
HT11K-25*2500 | 25*2500 | 3° | 5 | 40-800 | 37 | 3500*2400*2500 |
HT11K-25*3200 | 25*3200 | 3° | 4 | 40-1000 | 37 | 4200*2400*2500 |
