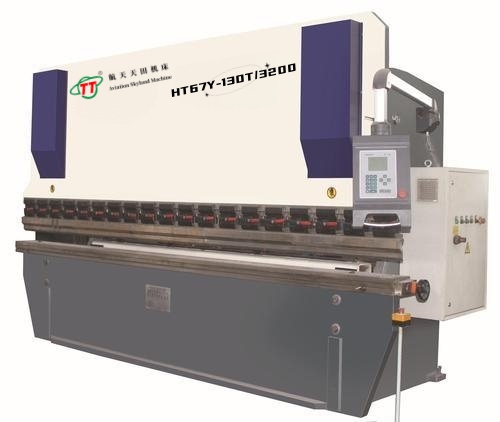

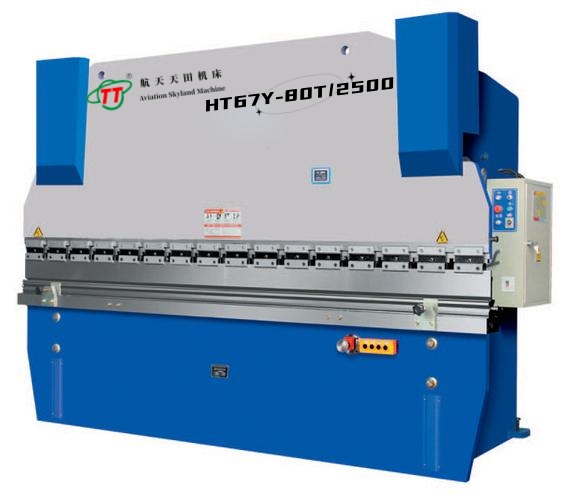

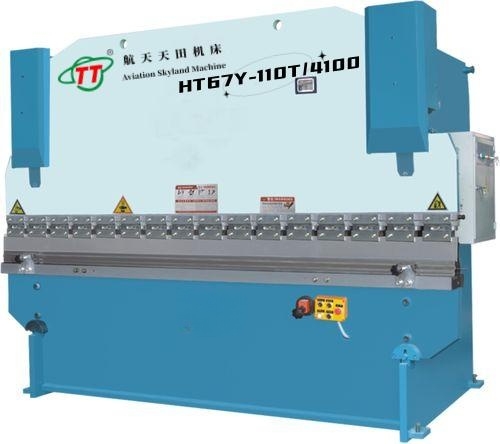

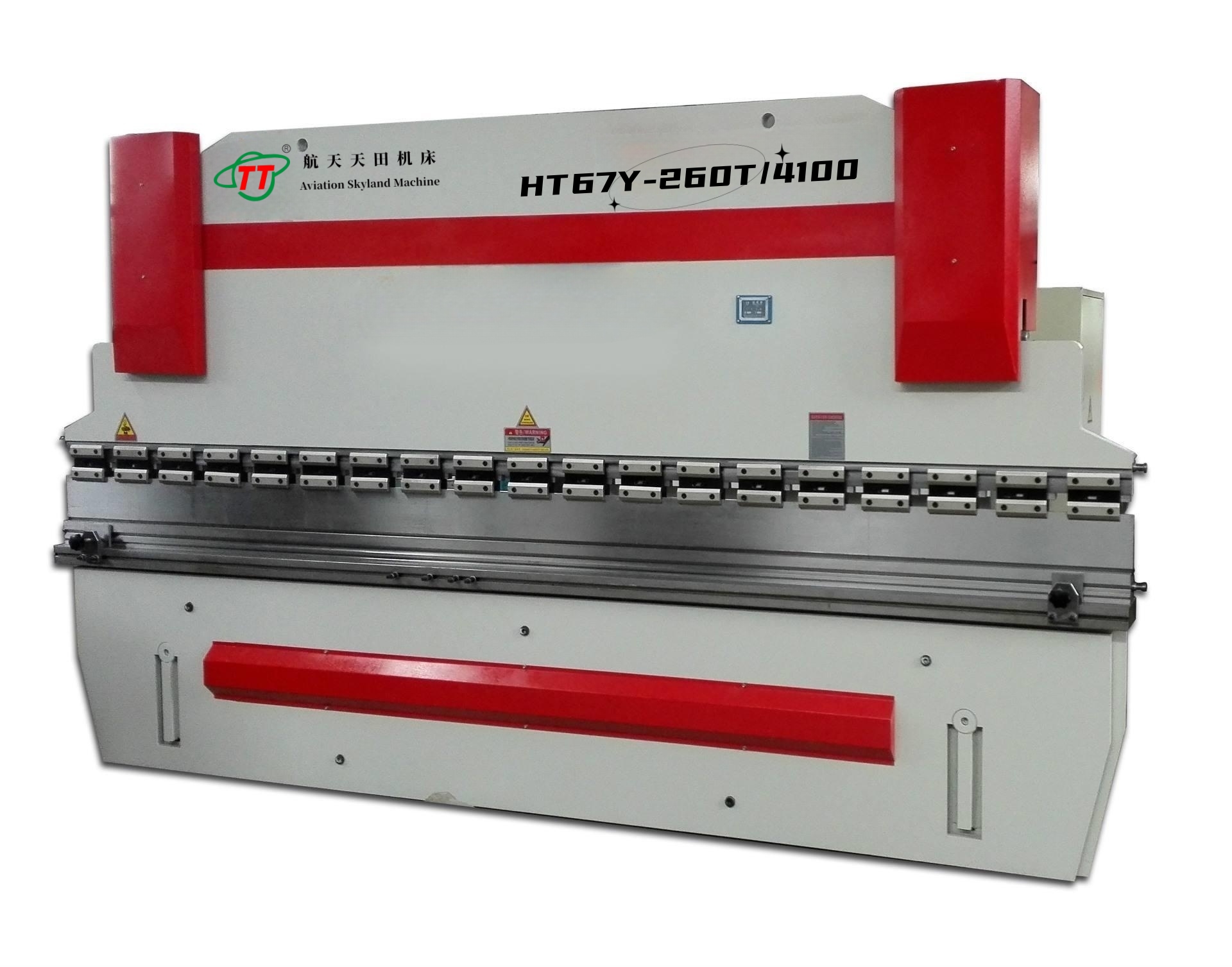

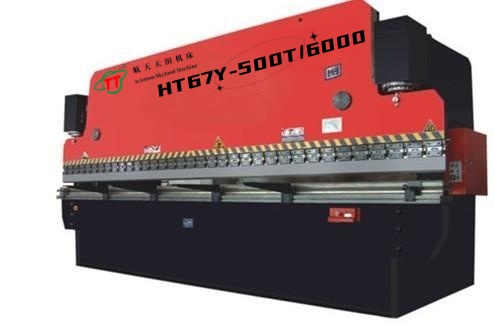

一、HT67Y液壓折彎?rùn)C(jī)性能與特點
6、上模配有撓度補償機構。
二、 HT67Y液壓板料折彎?rùn)C(jī)技術參數
型 號 | 公稱力 | 工作臺長度 | 力柱間距 | 喉口深度 | 滑塊行程 | 最大開啟高度 | 主電機功率 | 機器重量 | 外型尺寸 |
(KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (KW) | (Kg) | L×W×H | |
(mm) | |||||||||
40/2200 | 400 | 2200 | 1850 | 250 | 100 | 350 | 5.5 | 2400 | 2260*1200*1900 |
40/2500 | 400 | 2500 | 2150 | 250 | 100 | 350 | 5.5 | 2600 | 2560*1200*1900 |
50/2500 | 500 | 2500 | 2150 | 250 | 100 | 350 | 5.5 | 3000 | 2560*1200*1900 |
63/2500 | 630 | 2500 | 2150 | 250 | 120 | 350 | 5.5 | 3800 | 2560*1340*2200 |
63/3200 | 630 | 3200 | 2580 | 250 | 120 | 350 | 5.5 | 4600 | 3260*1340*;2200 |
80/3200 | 800 | 3200 | 2580 | 320 | 120 | 350 | 7.5 | 5500 | 3260*1400*2300 |
80/4000 | 800 | 4000 | 2980 | 320 | 120 | 350 | 7.5 | 6100 | 4060*1400*2300 |
100/3200 | 1000 | 3200 | 2580 | 320 | 130 | 435 | 7.5 | 6700 | 3260*1480*2450 |
100/4000 | 1000 | 4000 | 2980 | 320 | 130 | 450 | 7.5 | 7800 | 4060*1480*2450 |
125/3200 | 1250 | 3200 | 2580 | 320 | 130 | 435 | 11 | 7300 | 3260*1520*2550 |
125/4000 | 1250 | 4000 | 2980 | 320 | 130 | 435 | 11 | 8200 | 4060*1520*2550 |
160/3200 | 1600 | 3200 | 2580 | 320 | 150 | 470 | 11 | 9800 | 3260*1600*2800 |
160/4000 | 1600 | 4000 | 3000 | 320 | 150 | 470 | 11 | 11400 | 4060*1600*2800 |
160/5000 | 1600 | 5000 | 4000 | 320 | 150 | 470 | 11 | 12800 | 5060*1700*;2900 |
160/6000 | 1600 | 6000 | 5000 | 320 | 150 | 470 | 11 | 14600 | 6060*1700*3000 |
200/3200 | 2000 | 3200 | 2580 | 400 | 200 | 500 | 15 | 12900 | 3260*1600*2800 |
200/4000 | 2000 | 4000 | 3000 | 400 | 200 | 500 | 15 | 14600 | 4060*1600*2800 |
200/5000 | 2000 | 5000 | 4000 | 400 | 200 | 500 | 15 | 16600 | 5060*1700*2900 |
200/8000 | 2000 | 6000 | 5000 | 400 | 200 | 500 | 15 | 18800 | 6060*1700*3000 |
250/4000 | 2500 | 4000 | 3000 | 400 | 200 | 560 | 18.5 | 16500 | 4060*1700*3000 |
250/5000 | 2500 | 5000 | 4000 | 400 | 200 | 560 | 18.5 | 17800 | 5060*1700*3000 |
250/6000 | 2500 | 6000 | 5000 | 400 | 200 | 560 | 18.5 | 19700 | 6060*1800*3000 |
300/4000 | 3000 | 4000 | 3000 | 400 | 250 | 560 | 22 | 20000 | 4060*2000*3000 |
300/5000 | 3000 | 5000 | 4000 | 400 | 250 | 560 | 22 | 23000 | 5060*2000*3100 |
300/6000 | 3000 | 6000 | 5000 | 400 | 250 | 560 | 22 | 26500 | 6060*2100*3200 |
600/4000 | 4000 | 4000 | 3000 | 400 | 250 | 570 | 22 | 23600 | 4060*2000*3100 |
400/5000 | 4000 | 5000 | 4000 | 400 | 250 | 570 | 22 | 27000 | 5060*2000*3200 |
400/6000 | 4000 | 6000 | 5000 | 400 | 250 | 570 | 22 | 30600 | 6060*2100*3300 |
500/4000 | 5000 | 4000 | 3000 | 400 | 250 | 590 | 37 | 27000 | 4060*2300*3500 |
500/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 37 | 31000 | 5060*2300*3500 |
500/6000 | 5000 | 6000 | 5000 | 400 | 250 | 590 | 37 | 35000 | 6060*2300*3600 |
600/4000 | 6000 | 4000 | 3000 | 400 | 250 | 610 | 45 | 31000 | 4060*2400*3600 |
600/5000 | 6000 | 5000 | 4000 | 400 | 250 | 610 | 45 | 36000 | 5060*2400*3600 |
600/6000 | 6000 | 6000 | 5000 | 400 | 250 | 610 | 45 | 41000 | 6060*2500*3700 |
